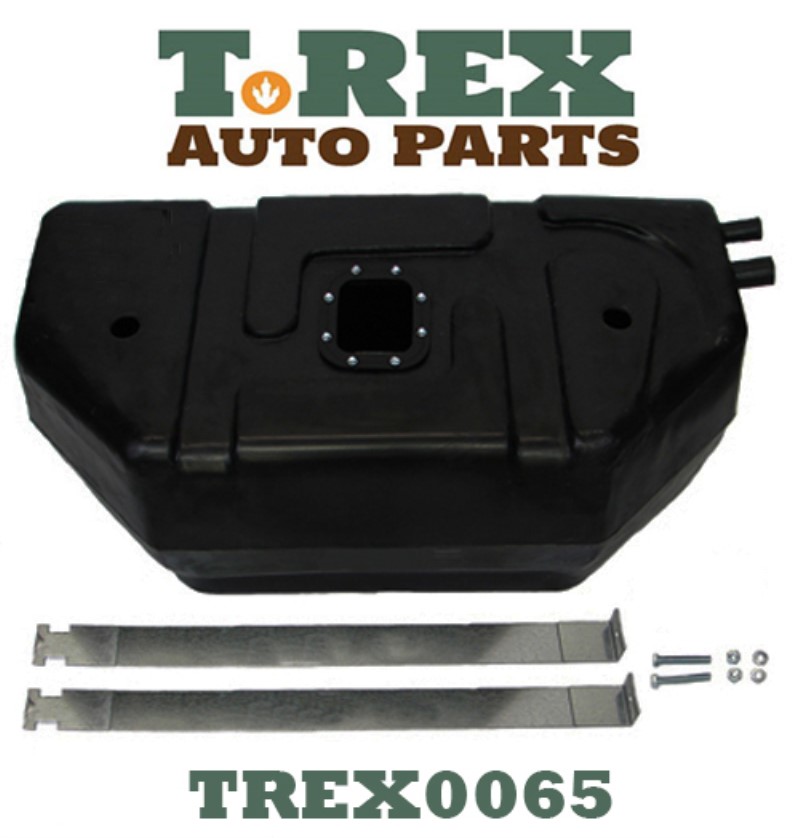

1987-1995 Jeep YJ 20 gal. plastic tankSKU: TREX0065
1987-1995 Jeep Wrangler YJ 20 gallon tank with fuel bowl & rectangle sending unit hole. Replaces original 20 gallon plastic tank with or without fuel injection (this tank will replace what Jeep called a "15 gallon PLASTIC tank" w/ rectangle sending unit hole from 1991-1995). Includes new gasket and two new upper straps.
This tank will directly replace Domestic model #'s 52002633 & 52018287.
This tank will NOT directly replace export model #'s 52018779, 52019226, 52007258 or 52002622 - a new skid plate and/or sending unit are required. (Examples of fitment issues: fill and vent pipes hit frame rail, sending unit to tall, tank doesn't sit flat on the skid plate, tank appears to be too tall, straps too short).
There is a possibility of additional OEM sku's, if yours does not match one of these six numbers, please call or email us before ordering.
Some early 1987-1990 Jeep 20 gallon plastic fuel tanks had an open ended skid plate without the rolled heat shield over the exhaust pipe, we recommend replacing the skid plate and fill hose/vent hose to resolve any fitment issues.
Tank measurements(LxWxH): 33 x 18 1/4" x 11 3/4"
