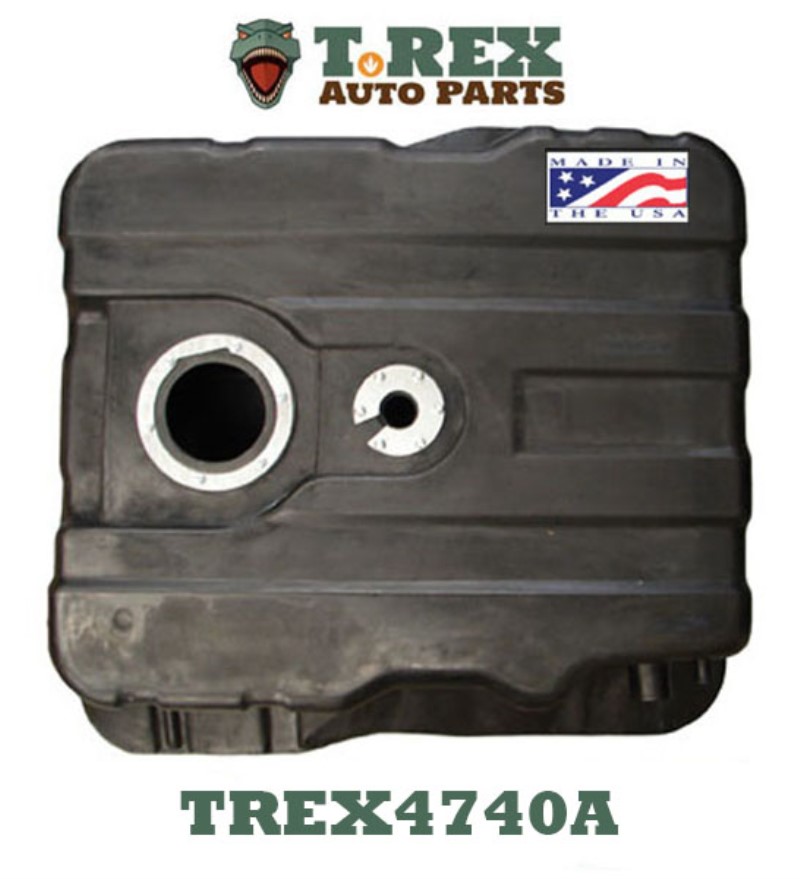

2000-2010 Ford Super Duty 40-Gal. Rear Diesel Tank
SKU: TREX4740A

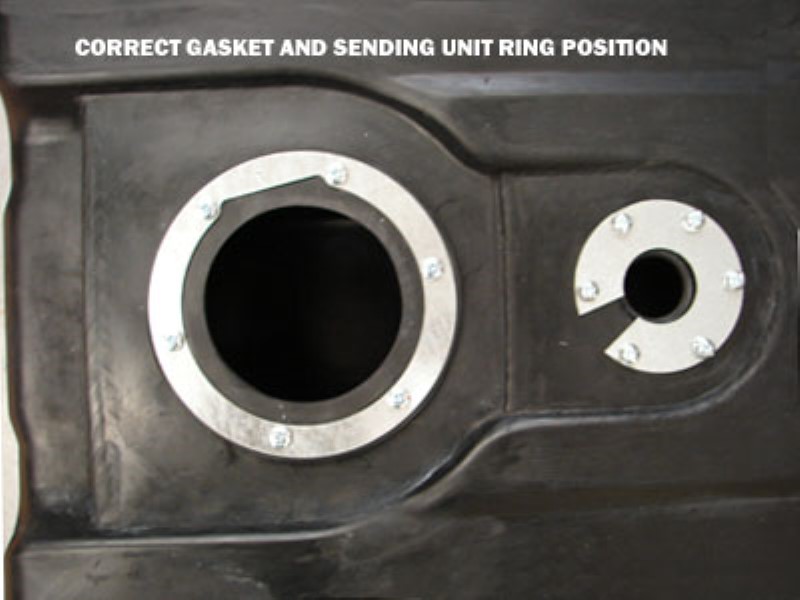

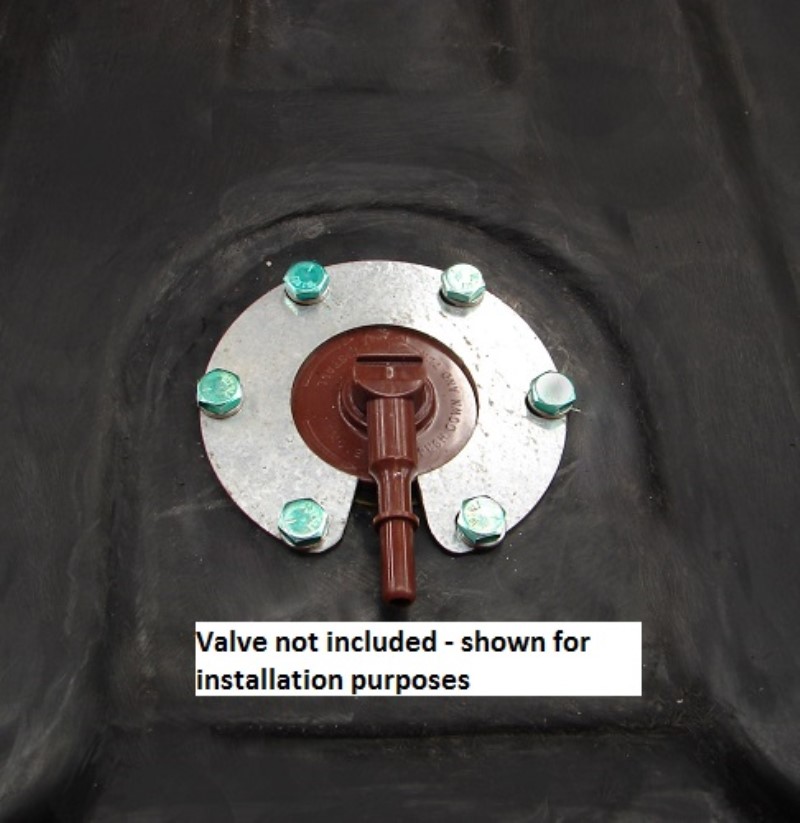

2000-2010 Ford F350, F-450, F-550 Super Duty 40-Gal. Rear/Aft axle 6.0L/7.3L "Diesel Only" fuel tank with (6) bolt style sending unit. Tank includes a specifically designed sending unit gasket(4740A-OR), (6) new bolts, (1) tube of thread sealer, sending unit hold down ring and (1) emission valve hold down ring. When installing the sending unit and emission valve, coat each screw with the thread sealant. Do NOT use the OEM sending unit gasket. The sending unit, emission vent valves and emissionl vent valve O-rings are NOT included. Approx. dimensions: 31" x 30" x 15.5". UPC #: 810160410843.
This tank replaces OEM tanks #'s: 3C3Z-9002-AA, 5C3Z-9002-BB, 6C3Z-9002-A, 6C3Z-9002-BA, 6C3Z-9002-E, 6C3Z-9002-F, 6E3Z-9002-AA and XC3Z-9002-AA.
*Trucks with F53 in the fifth, sixth and seventh VIN positions and have fuel tanks with OEM tank #'s 1C34-9K007-F*, 1C34-9K007-G* and 1C34-9K007-H*, are an inch shorter in length and have a larger filler pipe diameter. Our MTS tank will fit, but some custom adjustments to the straps are required.
