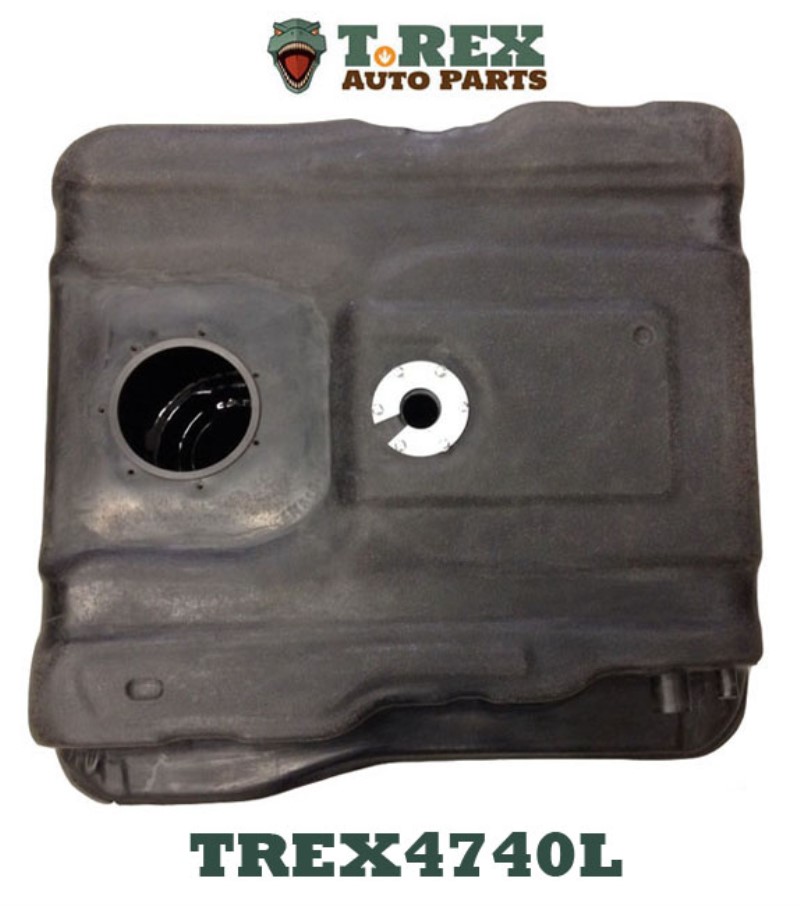

2011-2017 Ford Super Duty 40-Gal. Rear Diesel Tank
SKU: TREX4740L

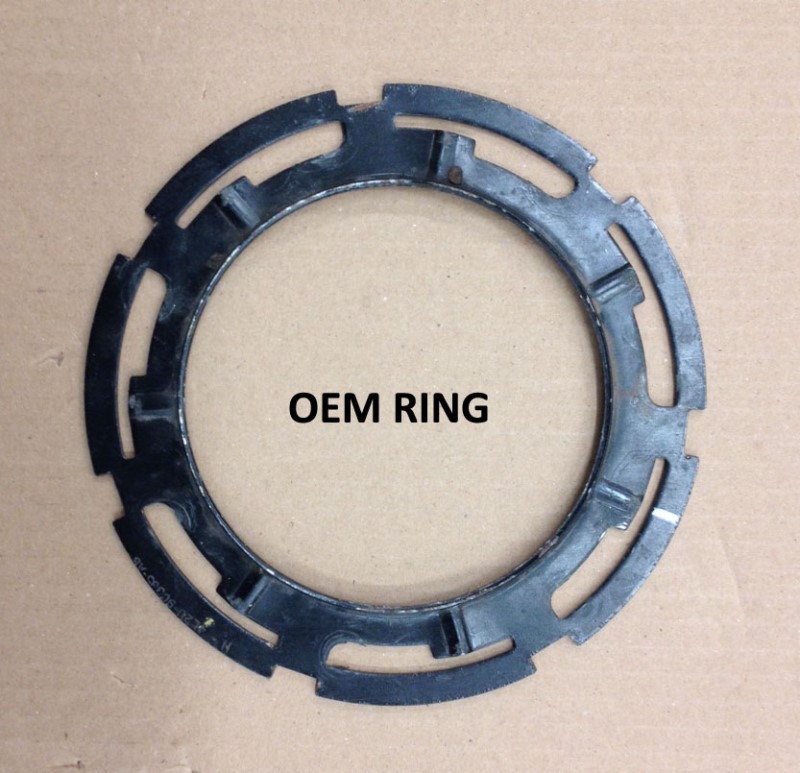

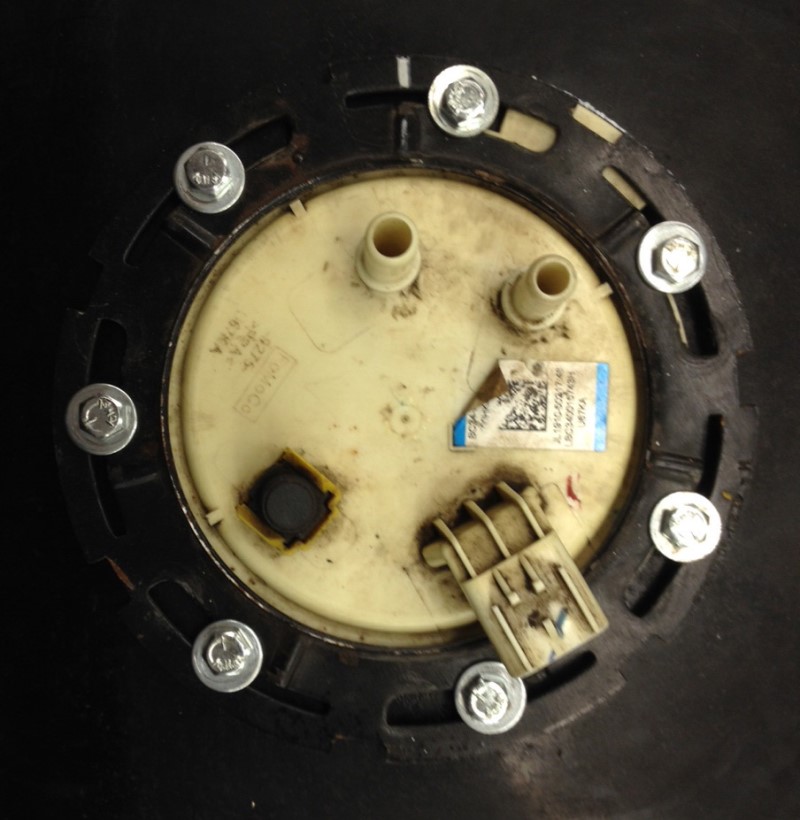

2011-2017 Ford F-350, F-450 and F-550 Super Duty 40-Gal. Rear/Aft axle "Diesel Only" fuel tank. Tank includes a specifically designed sending unit gasket(4740L-OR), (7) new bolts, (7) new washers, (1) tube of thread sealer and (1) emission vent valve hold down plate with (6) bolts. When installing the sending unit, make sure the fuel bowl sits properly in the bottom of the tank. The sending unit hold down ring from the original tank needs to be used to secure the sending unit to the tank. (See picture #2).
Make sure to coat each sending unit and vent valve bolt with the thread sealant. Do NOT use the OEM sending unit gasket. The sending unit, emission vent valve and emission vent valve O-ring are NOT included. Approx. dimensions: 31" x 30" x 14 1/2". Replaces #: CC3Z-9002-B. UPC #: 810160410867.
