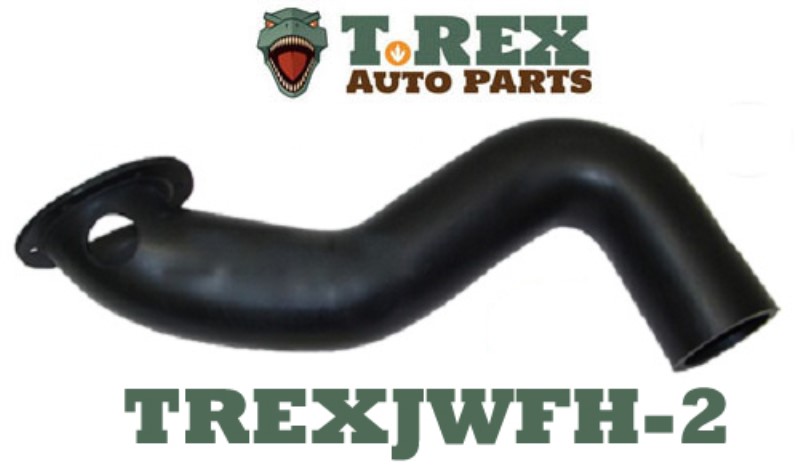

1967-1971 Jeep Wagoneer Upper Fuel Filler hose
SKU: TREXJWFH-2
1967-1971 Jeep Wagoneer "Upper" fill hose w/ flange for the Wagoneers with the Evap canister. Replaces # 992615.
**There are 4 known "Upper" fill hoses for the 1963-1979 Jeep Wagoneers! It is crucial to visually compare your hose to this hose listing and to know if your Wagoneer has the Evap canister. The primary differences are if the fill hose has a flange that is used to connect the hose to the side of the Jeep or not and where the vent hose connection hole is located. The vent hose is connected to the fill hose with a metal nipple(TREXCJFHN-1) by using this hole.
- This fill hose (w/ flange) - TREXJWFH-2 has the vent hole facing the front of the Wagoneer when installed and is for the Wagoneer's with the Evap canister.
- The 2nd "Upper" fill hose (w/ flange) - TREXJWFH-1 has the vent hole is facing the rear of the Wagoneer when installed and is for the Wagoneers without the Evap canister.
- The 3rd "Upper" fill hose (w/out flange) - TREXJWFH-0020SV has the vent hole is facing the rear of the Wagoneer when installed.
- The 4th "Upper" fill hose (w/out flange) - TREXJWFH-0020TV has the vent hole on top of the fill hose.
