1985-1998 Ford F-Series 19-Gal. Rear Fuel Tank
SKU: TREX4253
1985-1996 Ford F-150 Pickup 18.2/19-Gal. Rear/Aft axle fuel (gas/diesel) tank.
1985-1997 Ford F-250 Pickup 18.2/19-Gal. Rear/Aft axle fuel (gas/diesel) tank.
1997 Ford F-250HD Pickup 18.2/19-Gal. Rear/Aft axle fuel (gas/diesel) tank.
1985-1998 Ford F-350 Pickup 18.2/19-Gal. Rear/Aft axle fuel (gas/diesel) tank.
1990-1997 Ford F-Super Duty Pickup 18.2/19-Gal. Rear/Aft axle fuel (gas/diesel) tank.
Includes a new lock ring and a new gasket. Approx. dimensions: 25½" x 32½" x 8". Replaces #'s: E5TZ-9002-E, E7TZ-9002-A, F3TZ-9002-A, F6TZ-9002-A. UPC #: 810160410744.

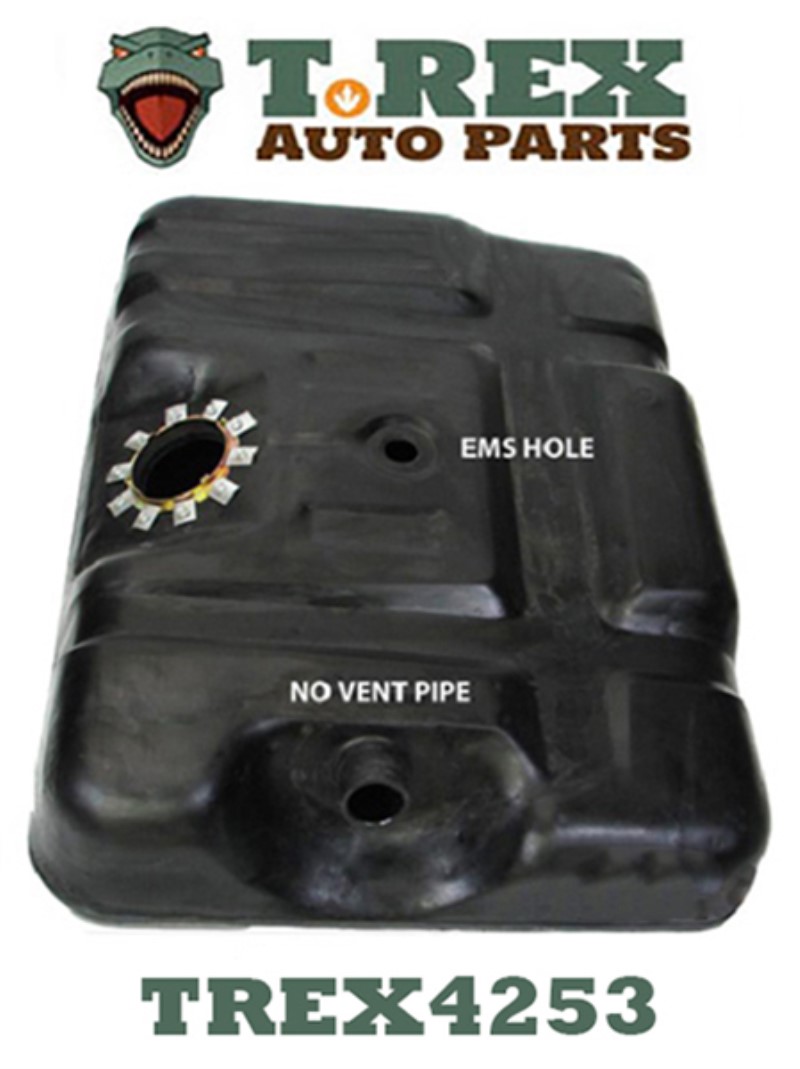

*This tank has an emission valve/rollover hole but it does not have an internal support vent pipe. The sending unit hole is approx. 3 5/8" in diameter.
**This tank does NOT replace the Ford OEM Plastic tank with the plastic nut securing the sending unit to the tank.

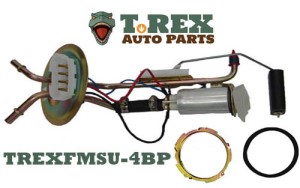

***The manufacturer has added some additional plastic around the interior of the tank at the sending unit hole. This additional plastic will not interfere with the diesel units from 1985-1998, nor the gas units with an in-tank fuel pump from 1985-1989 however the fuel modules that Ford started using in 1990 may hit this additional plastic when being installed. If this happens, the plastic will need to be trimmed to allow installation. The top half of the extra plastic can be trimmed in a crescent shape (similar to the fuel module shape) which will allow the unit to be installed. When trimming the plastic, use a shop vac to collect the plastic shavings and then rinse out the tank with some water. Only trim enough plastic so the module will install properly.**
****In 1990, Ford started referring to their 19 gallon tank as an 18.2 gallon tank even though the dimensional size of the metal tank (34 3/4" x 27" x 7 7/8" includes flange) stayed the same from 1980-1998. This aftermarket plastic tank will directly replace the metal 19/18.2 gallon tank from 1985-1998 in the F-Series Pickups. The dimensions provided for this plastic tank are without a flange and are approx.
