1994-97 Ford F-Series 19-Gal. Rear Diesel Tank S.U
SKU: TREXFMSU-9DER

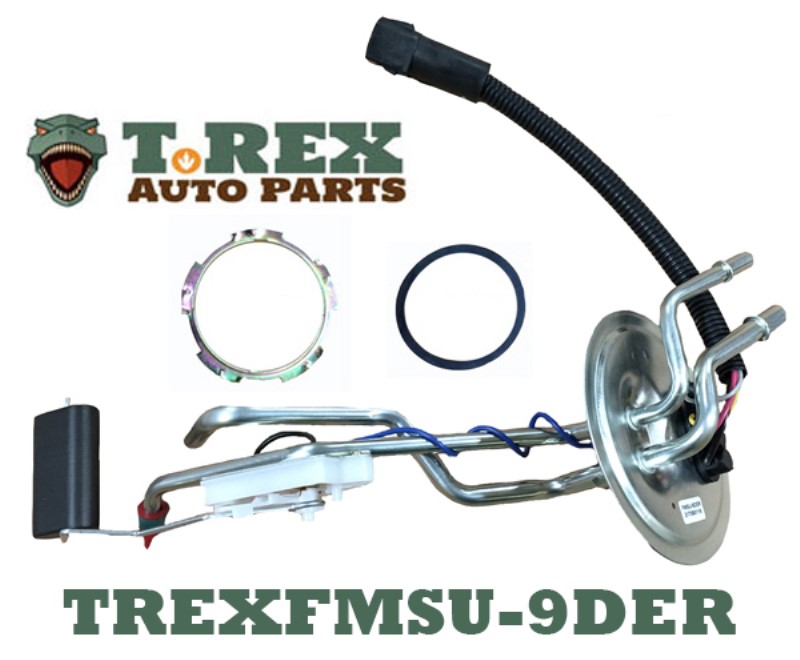

1994-1997 Ford F-Series Pickup 18.2/19-Gal. DIESEL ONLY Fuel Sending Unit for the Rear* OEM metal style fuel tank (approx. 25 1/2" x 33 1/2" x 8"). Includes a new lock ring and gasket. The in-tank fuel filter is sold separately: TREXFMFF-1. Replaces #'s: F6TZ-9275-AA and F6TZ-9275-DA.
*If your original rear fuel tank is OEM plastic with a white plastic nut securing the unit to the tank, this sending unit will NOT work, please check out our part #: TREXFMSU-14DEP.
**Fits the MTS Plastic tank: TREX4253.
***Do NOT mix and match years; each unit is specific to the stated years, ohm range, and tank fitment.

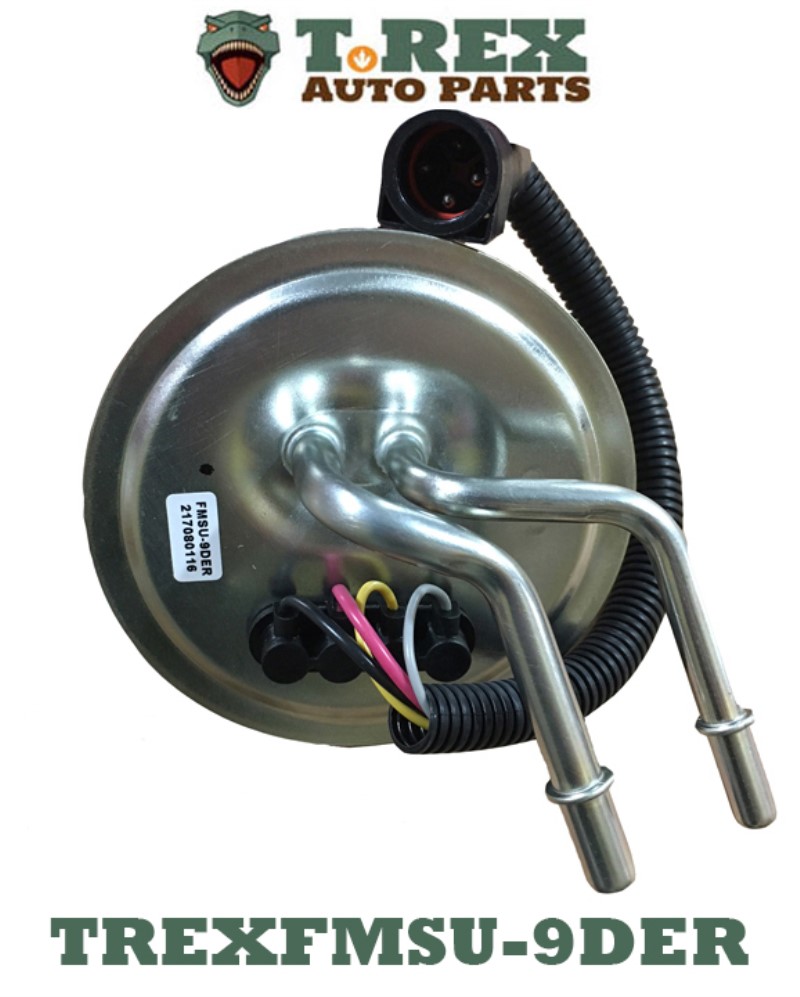

****Verify that your wiring harness plug connection matches the one in picture #2. We have had a few customers (less than .5% of units sold) state their plug was smaller in diameter like the front tank. At this time, there are no other male/female harnesses/plugs available and the only real world solution is to cut of the old harness and splice onto the new unit.
Aftermarket Ford OEM Plastic Rear & Midship tank sending units available at this time:
TREXFMSU-10DEP: 1985-1986 Ford OEM Plastic Rear tank sending unit
TREXFMSU-12DEP: 1987-1989 Ford OEM Plastic Rear tank sending unit
TREXFMSU-11DEP: 1990-1991 Ford OEM Plastic Rear tank sending unit
TREXFMSU-11DEPS: 1990-1991 Ford OEM Plastic Midship tank sending unit
TREXFMSU-13DEP: 1992-1993 Ford OEM Plastic Rear tank sending unit
TREXFMSU-13DEPS: 1992-1993 Ford OEM Plastic Midship tank sending unit
TREXFMSU-14DEP: 1994-1997 Ford OEM Plastic Rear tank sending unit
TREXFMSU-14DEPS: 1994-1997 Ford OEM Plastic Midhsip tank sending unit
Aftermarket Ford OEM Rear & Side Metal tank sending units currently available:
TREXFMSU-4DE: 1983-1984 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-4DER: 1983-1984 Ford 19-Gal. Rear Metal tank sending unit
TREXFMSU-6DE: 1985-1986 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-6DER: 1985-1986 Ford 19-Gal. Rear Metal tank sending unit
TREXFMSU-5DE: 1987-1989 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-5DER: 1987-1989 Ford 19-Gal. Rear Metal tank sending unit
TREXFMSU-7DE: 1990-1991 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-7DER: 1990-1991 Ford 19-Gal. Rear Metal tank sending unit
TREXFMSU-8DE: 1992-1993 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-8DER: 1992-1993 Ford 18.2-Gal. Rear Metal tank sending unit
TREXFMSU-9DE: 1994-1997 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-9DES: 1994-1997 Ford 16-Gal. Side Metal Tank sending unit
TREXFMSU-9DER: 1994-1997 Ford 18.2-Gal. Rear Metal tank sending unit
• Ohm range: Full 155-165, Empty 5-15
