1994-97 Ford F-Series 16-Gal. Side Diesel Tank S.U
SKU: TREXFMSU-9DES

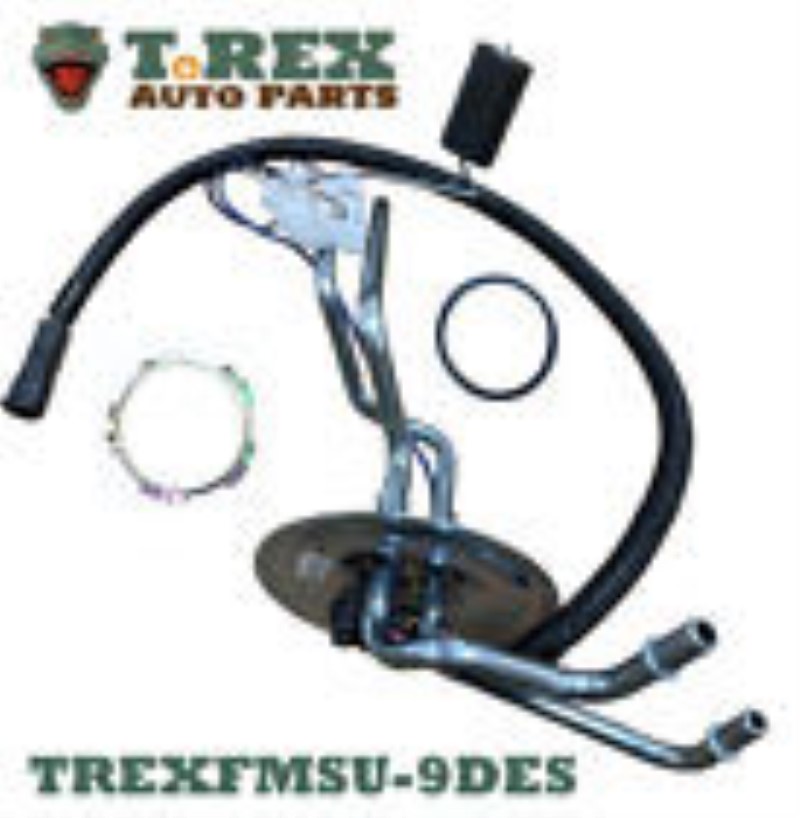

1994-1997 Ford F-Series Pickup 16-Gal. DIESEL Fuel Sending Unit for the front/side/midship OEM metal style fuel tank (approx. 40" long). Includes a new lock ring and a new gasket. The in-tank fuel filter is sold separately: TREXFMFF-1. Replaces #: F6TZ-9275-CA and F6TZ-9275-EA.
*If your original front/side/midship fuel tank is OEM plastic with a white plastic nut securing the unit to the tank or the OEM 19-Gal. metal fuel tank (approx. 56” long), this sending unit will NOT work.
**Fits the MTS plastic fuel tank: TREX4216A.

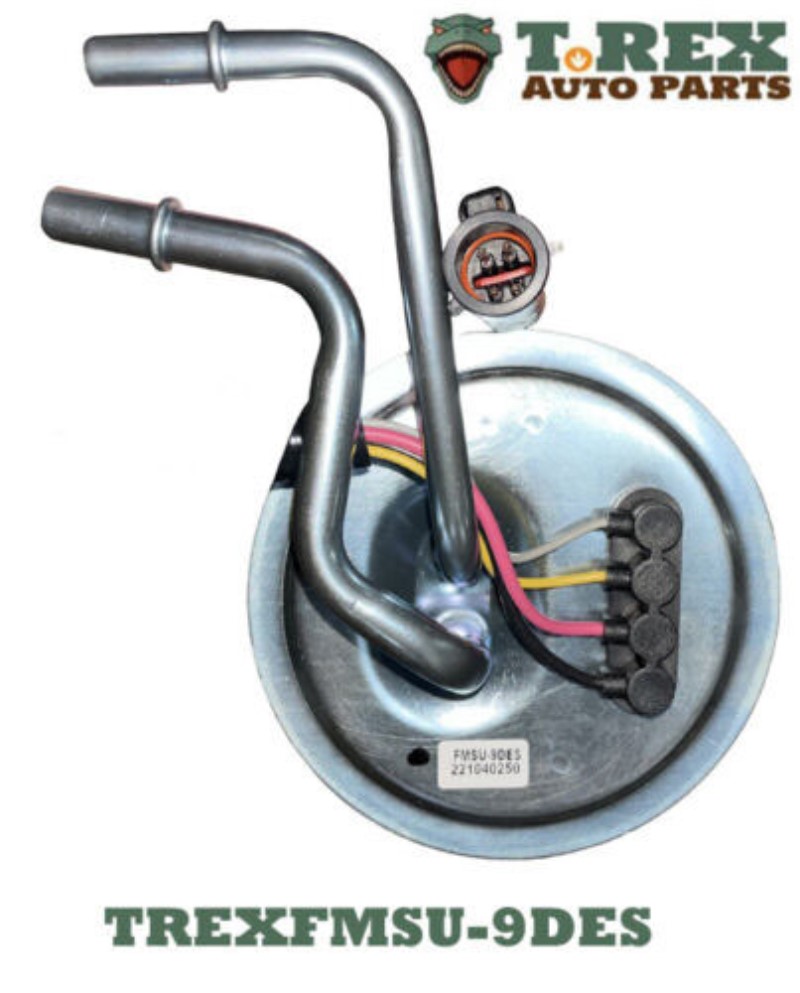

***Verify that your wiring harness plug connector matches the one in picture #2. We have had a few customers (less than .5% of units sold) state their plug was larger in diameter. At this time, there are no other male/female harnesses/plugs available.
****Do NOT mix and match years; each unit is specific to the stated years, ohm range, and tank fitment.
Aftermarket Ford OEM Plastic Rear & Midship tank sending units available at this time:
TREXFMSU-10DEP: 1985-1986 Ford OEM Plastic Rear tank sending unit
TREXFMSU-12DEP: 1987-1989 Ford OEM Plastic Rear tank sending unit
TREXFMSU-11DEP: 1990-1991 Ford OEM Plastic Rear tank sending unit
TREXFMSU-11DEPS: 1990-1991 Ford OEM Plastic Midship tank sending unit
TREXFMSU-13DEP: 1992-1993 Ford OEM Plastic Rear tank sending unit
TREXFMSU-13DEPS: 1992-1993 Ford OEM Plastic Midship tank sending unit
TREXFMSU-14DEP: 1994-1997 Ford OEM Plastic Rear tank sending unit
TREXFMSU-14DEPS: 1994-1997 Ford OEM Plastic Midhsip tank sending unit
Aftermarket Ford OEM Rear & Side Metal tank sending units currently available:
TREXFMSU-4DE: 1983-1984 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-4DER: 1983-1984 Ford 19-Gal. Rear Metal tank sending unit
TREXFMSU-6DE: 1985-1986 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-6DER: 1985-1986 Ford 19-Gal. Rear Metal tank sending unit
TREXFMSU-5DE: 1987-1989 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-5DER: 1987-1989 Ford 19-Gal. Rear Metal tank sending unit
TREXFMSU-7DE: 1990-1991 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-7DER: 1990-1991 Ford 19-Gal. Rear Metal tank sending unit
TREXFMSU-8DE: 1992-1993 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-8DER: 1992-1993 Ford 18.2-Gal. Rear Metal tank sending unit
TREXFMSU-9DE: 1994-1997 Ford 19-Gal. Side Metal tank sending unit
TREXFMSU-9DES: 1994-1997 Ford 16-Gal. Side Metal Tank sending unit
TREXFMSU-9DER: 1994-1997 Ford 18.2-Gal. Rear Metal tank sending unit
Ohm range: Full 155-165, Empty 5-15
